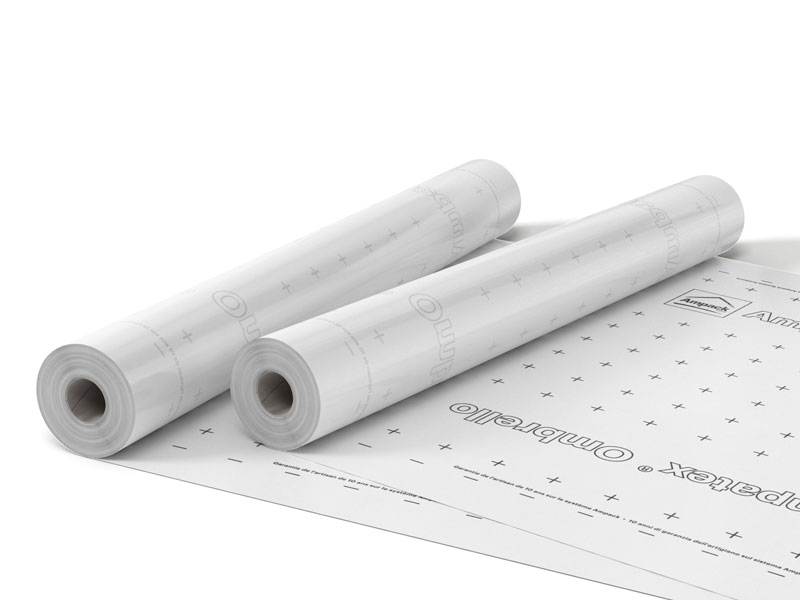

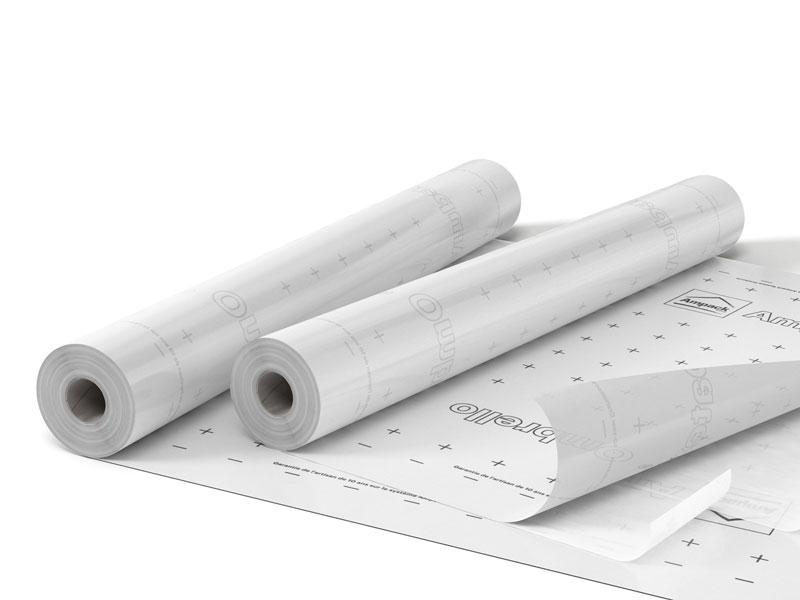

Ampatex Ombrello
Self-adhesive vapour check and weather protection

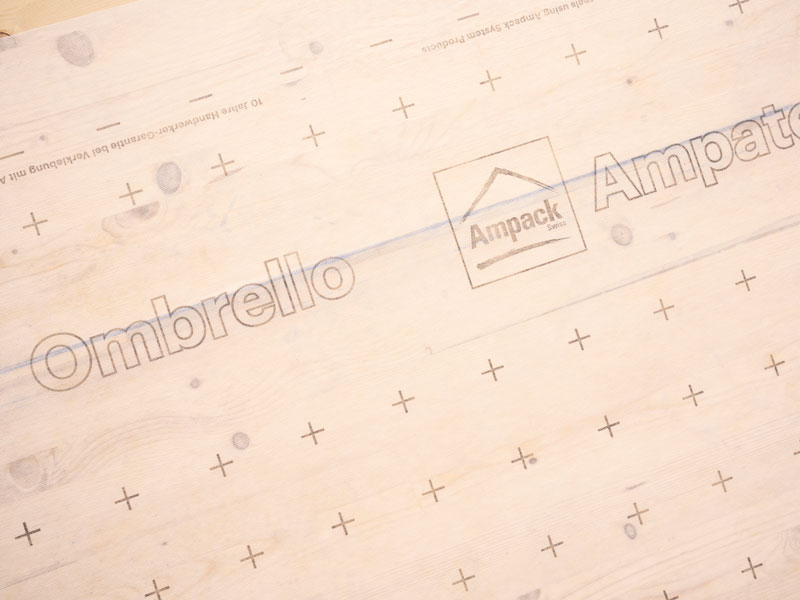

Transparent, full-surface adhesive vapour check and weather protection membrane.
- Transparent: furring, chalklines, penetrations, etc. remain visible
- Adhesive made of UV acrylate: moisture does not affect the adhesive
- Natural weathering period of 3 months: sufficient time for construction phase
- Easy to install and non-slip: for faster work and safe walking during the construction phase
Transparent, full-surface adhesive vapour check and weather protection membrane. Used, for example, to temporarily cover wooden ceilings during the transport, assembly and construction phase or to ensure airtightness on wooden materials and other substrates.
Conditions for the twenty-year premium warranty include registering the building object and the Ampack products used. In addition, our products must be used as part of a system. For further details, please see our General Warranty Conditions.
| Article number | Description | Roll dimensions |
|---|---|---|
7640442091384 | Ampatex Ombrello Liner division: 25 cm / 125 cm | 1,5 m × 50 m = 75 m2 |
| 7640442091599 | Ampatex Ombrello | 375 mm x 50 m = 18,75 m2 |
| 7640442091575 | Ampatex Ombrello | 750 mm x 50 m = 37,50 m2 |
| Property | Value | Standard |
|---|---|---|
| Harmonised European Standard | EN 13984:2013 | |
|
Mass per unit area |
160 g/m2 |
EN 1849-2 |
|
Straightness |
< 75 mm / 10 m |
EN 1848-2 |
|
Fire behaviour |
E | EN 13 501-1 / EN ISO 11925-2 |
| Waterproofing | approved at 2 kPa | EN 1928, procedure A |
|
Water vapour permeability, sD value |
5 m | EN 1931 |
|
Width of overlap |
≥ 10 cm | |
|
Temperature resistance |
– 40°C to + 80 °C | |
|
Maximum tensile strength longitudinal / transverse |
110 / 100 N/5 cm |
EN 12 311-2, without support liner EN 13 859-1, Appendix A, with support liner |
|
Elongation longitudinal / transverse |
60 / 80 % |
EN 12 311-2, without support liner EN 13 859-1, Appendix A, with support liner |
|
Resistance to tearing (nail) longitudinal / transverse |
80 / 80 N |
EN 12 310-1 without support liner EN 13 859-1, Appendix B, with support liner |
| Air tightness | air tight | |
|
Outdoor weathering |
Pitched roof >10° and wall: 3 Monate, ceiling: 1 Monat | |
| Visible defects | none | EN 1850-2 |
| Values after artificial ageing | ||
|
Water vapour permeability, sD value |
approved | EN 1296, 70°C / EN 1931 |
Technical data sheets
|
Technical data sheet: Ampatex Ombrello | Technical data sheet: Ampatex Ombrello, weather protection / construction period cover |
Advertising media
|
|
Folder: Ampatex Ombrello | Folder: Ampatex Ombrello, weather protection / construction period cover |
Product inserts
|
|
Product insert: Ampatex Ombrello | Product insert: Ampatex Ombrello 1,5 x 50 m, weather protection / construction period cover |
Declarations of performance
|
|
Declaration of performance: Ampatex Ombrello 1,5 x 50 m | Declaration of performance: Ampatex Ombrello 1,5 x 50 m, Weather protection and construction period cover |
Tendering texts
|
|
Tendering text: Ampatex Ombrello | Tendering text: Ampatex Ombrello, weather protection / construction period cover, fully self-adhesive |
Product photos
|
Product photo: Ampatex Ombrello | Product photo: Ampatex Ombrello, weather protection / construction period cover |
|
|
Product photo: Ampatex Ombrello | Product photo: Ampatex Ombrello, weather protection / construction period cover |
|
|
Product photo: Ampatex Ombrello | Product photo: Ampatex Ombrello, weather protection / construction period cover |
Application photos
|
|
Application photo: Ampatex Ombrello | Application photo: Ampatex Ombrello, weather protection / construction period cover |
|
|
Application photo: Ampatex Ombrello | Application photo: Ampatex Ombrello, weather protection / construction period cover |
|
|
Application photo: Ampatex Ombrello | Application photo: Ampatex Ombrello, weather protection / construction period cover |
|
|
Application photo: Ampatex Ombrello | Application photo: Ampatex Ombrello, weather protection / construction period cover |
|
|
Application photo: Ampatex Ombrello | Application photo: Ampatex Ombrello, weather protection / construction period cover |
Ampatex Ombrello

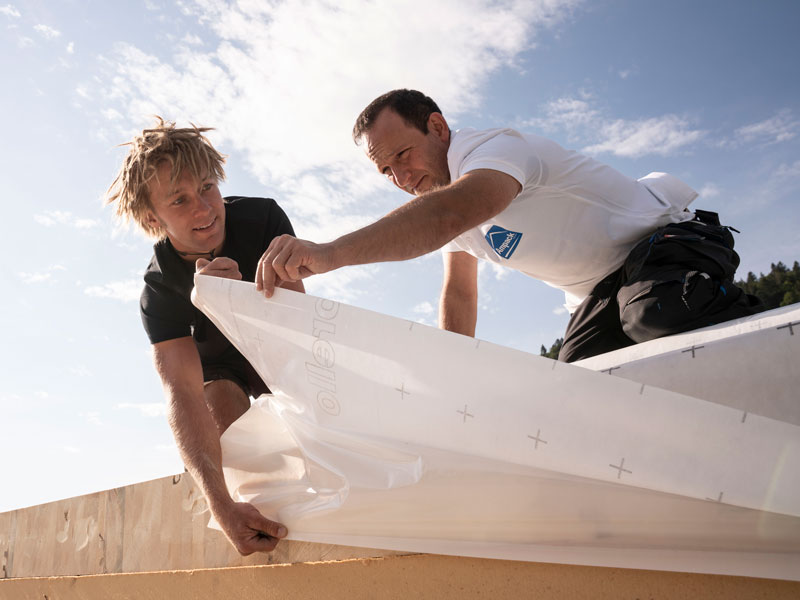

Before applying the tape, any pointed or sharp edges and objects such as stones, wood splinters, etc. must be removed. Ensure that the substrate is clean, dry and free of dust, ice and grease. Tip: Install on the construction site with two or three persons. In windy conditions, work with the wind direction. Align Ampatex Ombrello with the markings, imprint or chalkline. Overlap Ampatex Ombrello by at least 10 cm. Note the dashed overlap line for this.

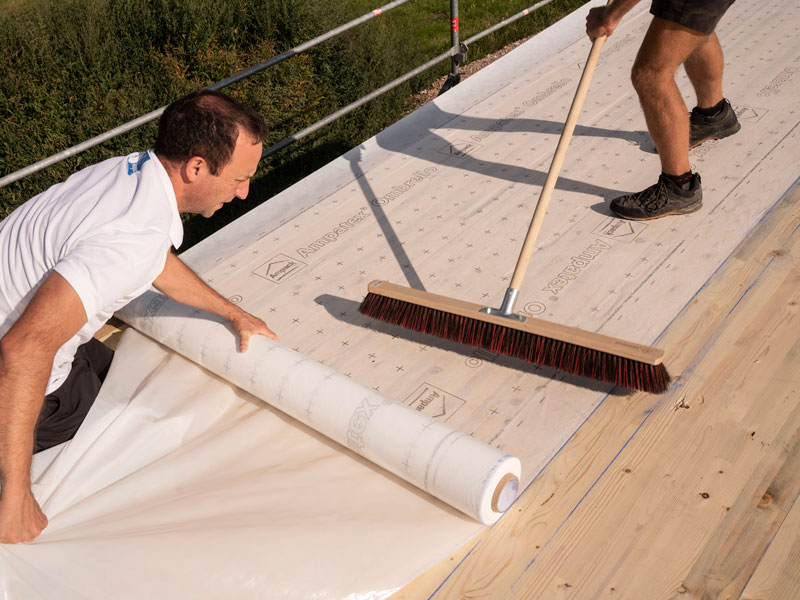

Roll out the membrane so far that it can be aligned. It is best to peel off the narrow cover strip first and thereby fix the membrane in the desired position over the entire length. Then peel off the wide cover strip. While peeling off, rub the membrane well on the surface with a soft broom or similar. Important: Ensure adequate drainage when applying on horizontal or flat components.
Protect the membrane from mechanical damage. Ensure cleanliness on the construction site. Cover exposed areas such as walkways if necessary. Ampatex Ombrello is a temporary weather protection solution and is not intended for flatroof waterproofing.

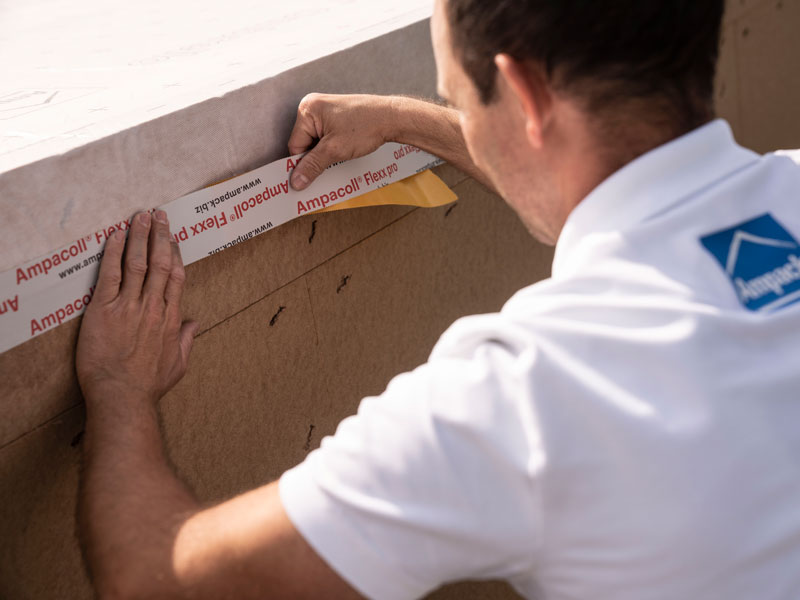

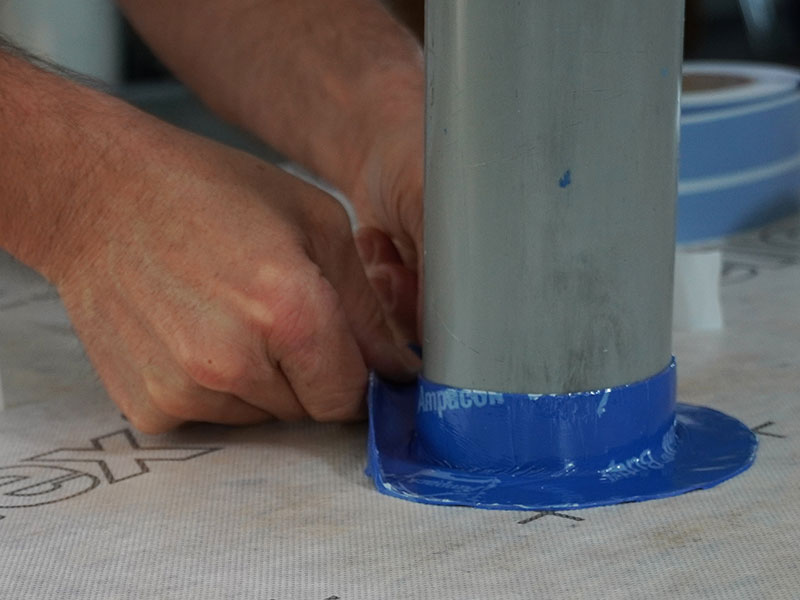

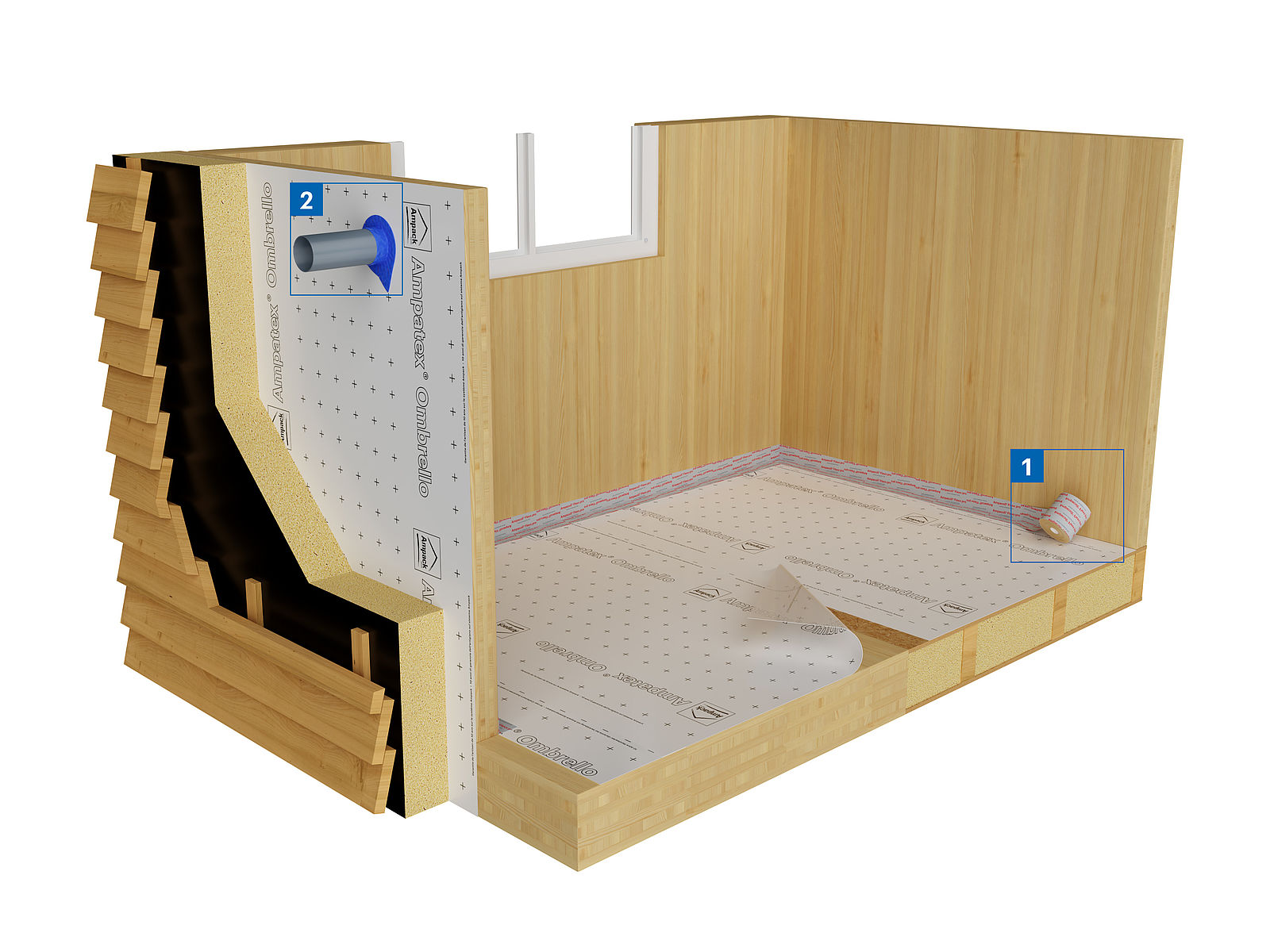

For panel joints and connections, use Ampacoll Flexx pro 150 mm. Penetrations are best sealed with Ampacoll BK 535 (50, 80 or 120 mm). Substrates may have to be pre-treated with Ampacoll Primax or Ampacoll Airmax.
