Ampacoll Fenax DS

Window connection tape, double-sided

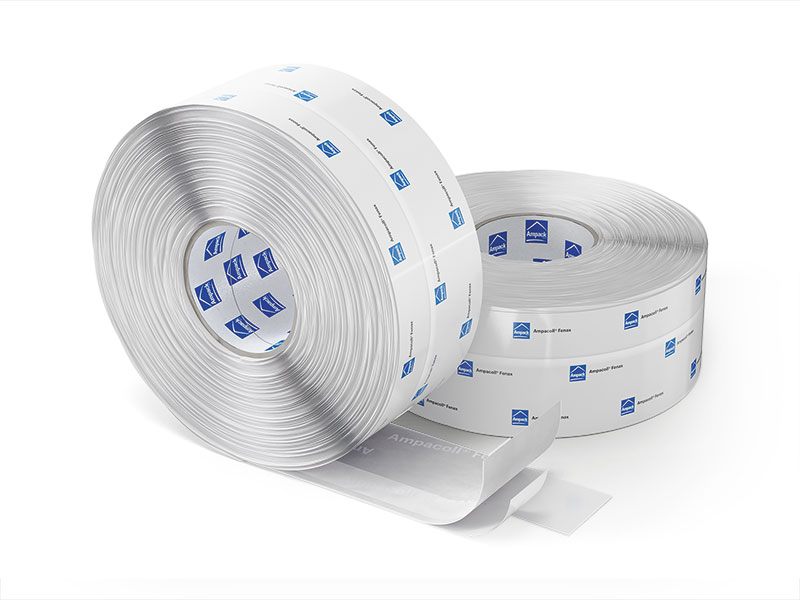

Product photo: Ampacoll Fenax DS 30/45, window connection tapes, moisture-variable

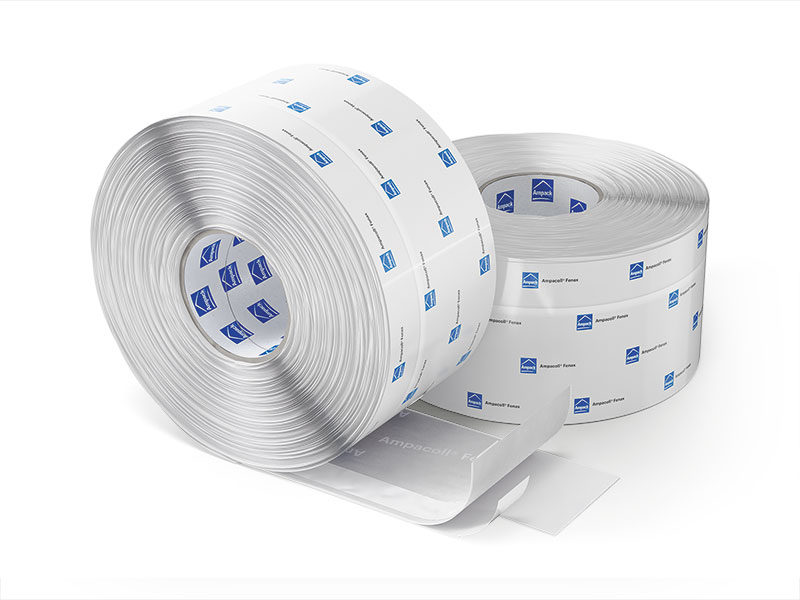

Product photo: Ampacoll Fenax DS 30/70, window connection tapes, moisture-variable

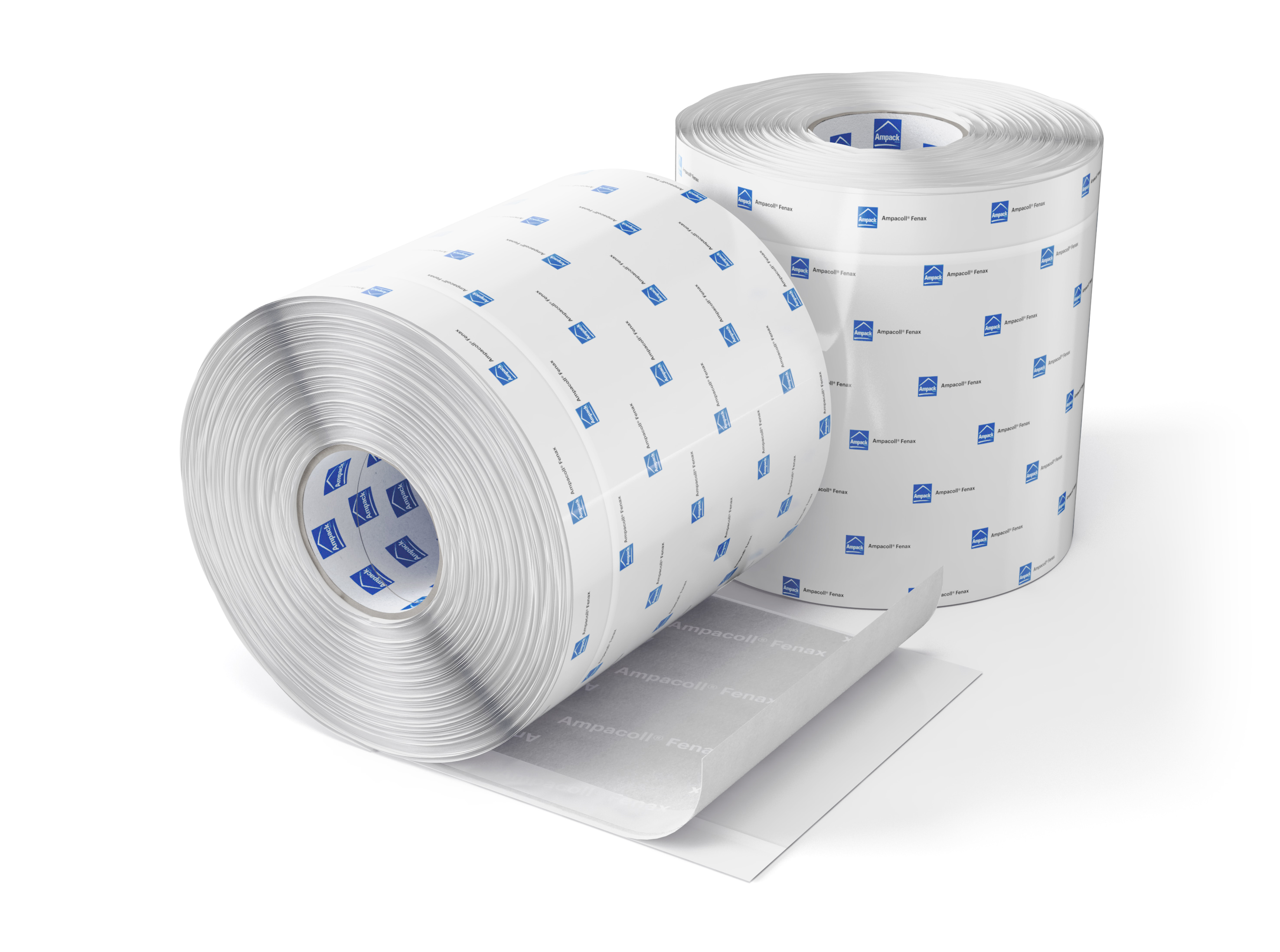

Product photo: Ampacoll Fenax DS 30/170, window connection tapes, moisture-variable

One side is fully adhesive, the other has a fleece layer with a 20 mm wide adhesive strip attached to it.

  • Extremely adhesive even at low temperatures
  • Adhesive all over
  • Moisture variable
  • Same tape for both inside and outside use The «tighter inside than outside» requirement is met
  • Easy-peel liner
  • Safe to plaster over
  • No primer required on dry surfaces
  • Weather resistant for 12 months

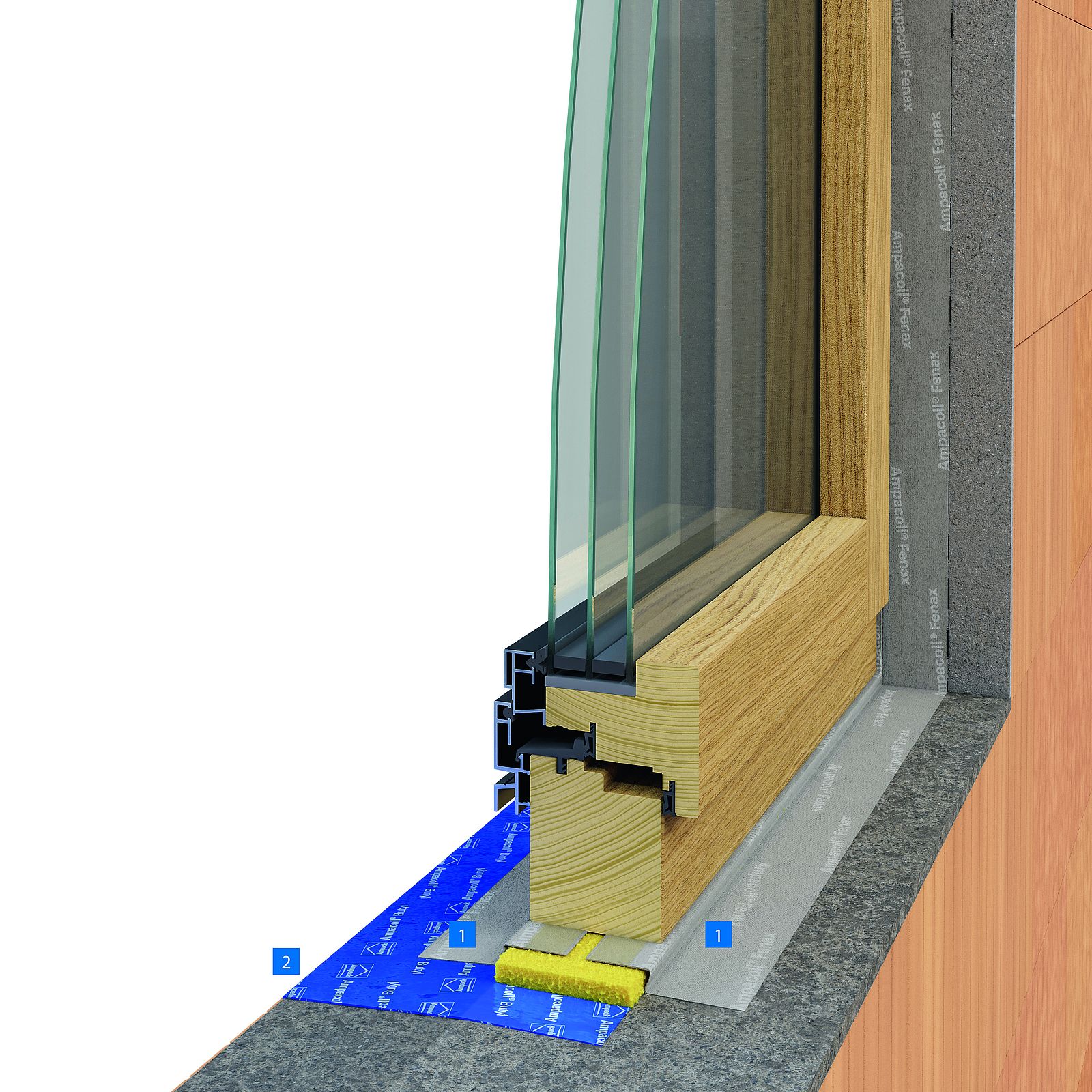

One side is fully adhesive, the other has a fleece layer with a 20 mm wide adhesive strip attached to it. This window connection tape is ideal for creating tight connections of windows or doors before installation.

Einsatzbereich

Sealed connection of doors and windows in solid, wood and metal constructions.


20-year Ampack premium warranty

Conditions for the twenty-year premium warranty include registering the building object and the Ampack products used. In addition, our products must be used as part of a system. For further details, please see our General Warranty Conditions.

ift-Rosenheim

Fugeneigenschaften nach ift Richtlinie MO-01/1 : 2007 – Abschnitt 5. 18-002878-PR03 (PB-E03-020310-de) Ampacoll Fenax DS

ISO 9001

VOC_FR

Item no. Identification Roll size Box contents
7640115537515 Ampacoll Fenax 30/45 DS 25 m × 75 mm
Liner split : 30 mm, 45 mm
6 rolls = 150 m
7640115537546 Ampacoll Fenax 30/70 DS 25 m × 100 mm
Liner split : 30 mm, 70 mm
4 rolls = 100 m
7640115537607 Ampacoll Fenax 30/170 DS 25 m × 200 mm
Liner split : 30 mm, 170 mm
2 rolls = 50 m
Property Value Standard

Storage

cool and dry

Durability

> 20 years

Tear resistance lengthways / crossways

220 N / 280 N

Elongation longitudinal / transverse

100% / 140%

Elasticity

transverse 140% longitudinal 100%

Water vapour permeability, sD value

1,5 – 16,5 m

Amount of adhesive to be applied

300 g/m2

Operating temperature for product

– 5 °C to + 40 °C

Temperature resistance

– 40 °C to + 100 °C

Outdoor weathering

12 months (Central Europe)
