Ampacoll Komprimax M

Multifunctional tapes

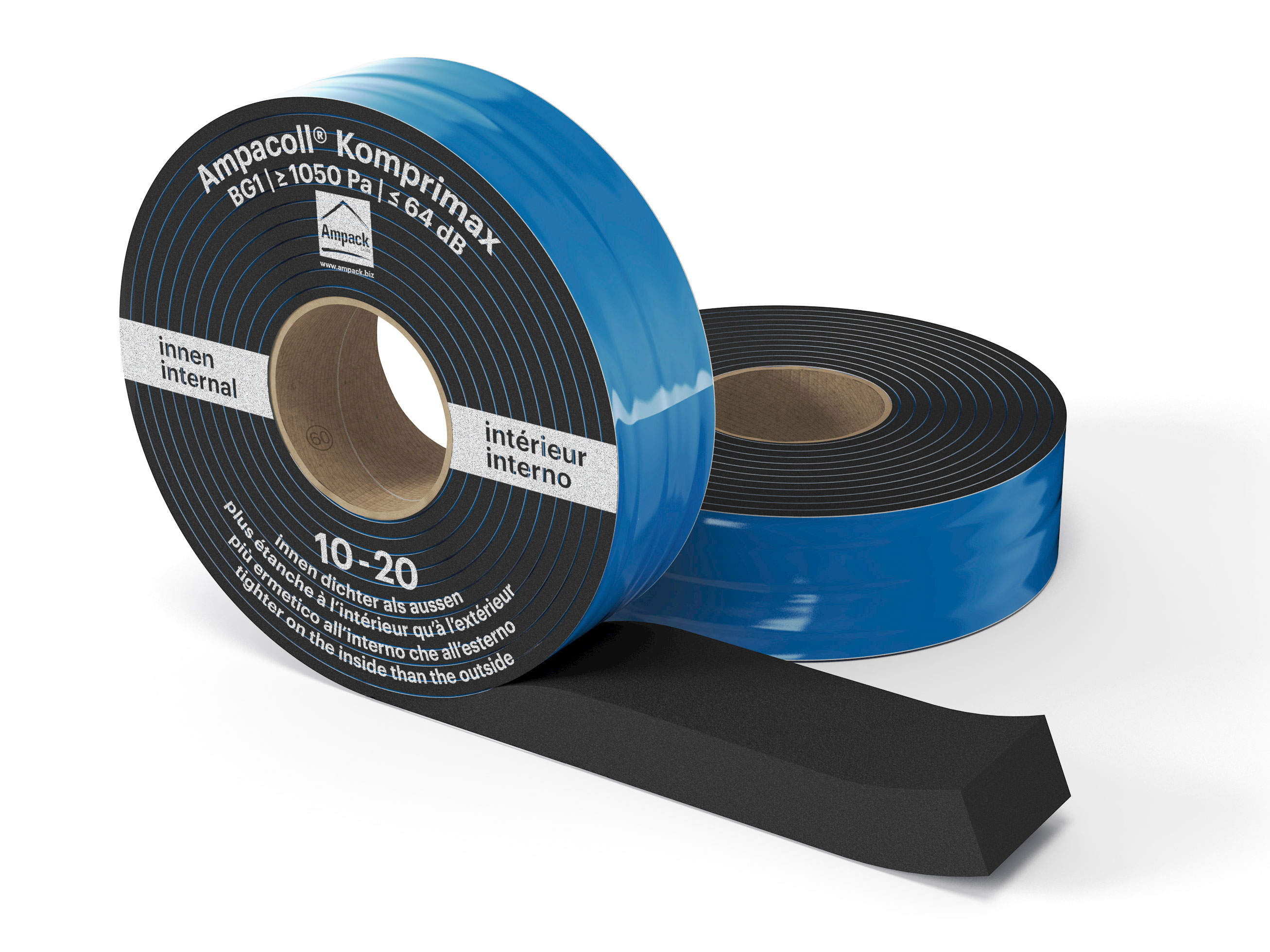

Product photo: Ampacoll Komprimax M 60/10-20, pre-compressed multifunctional tape

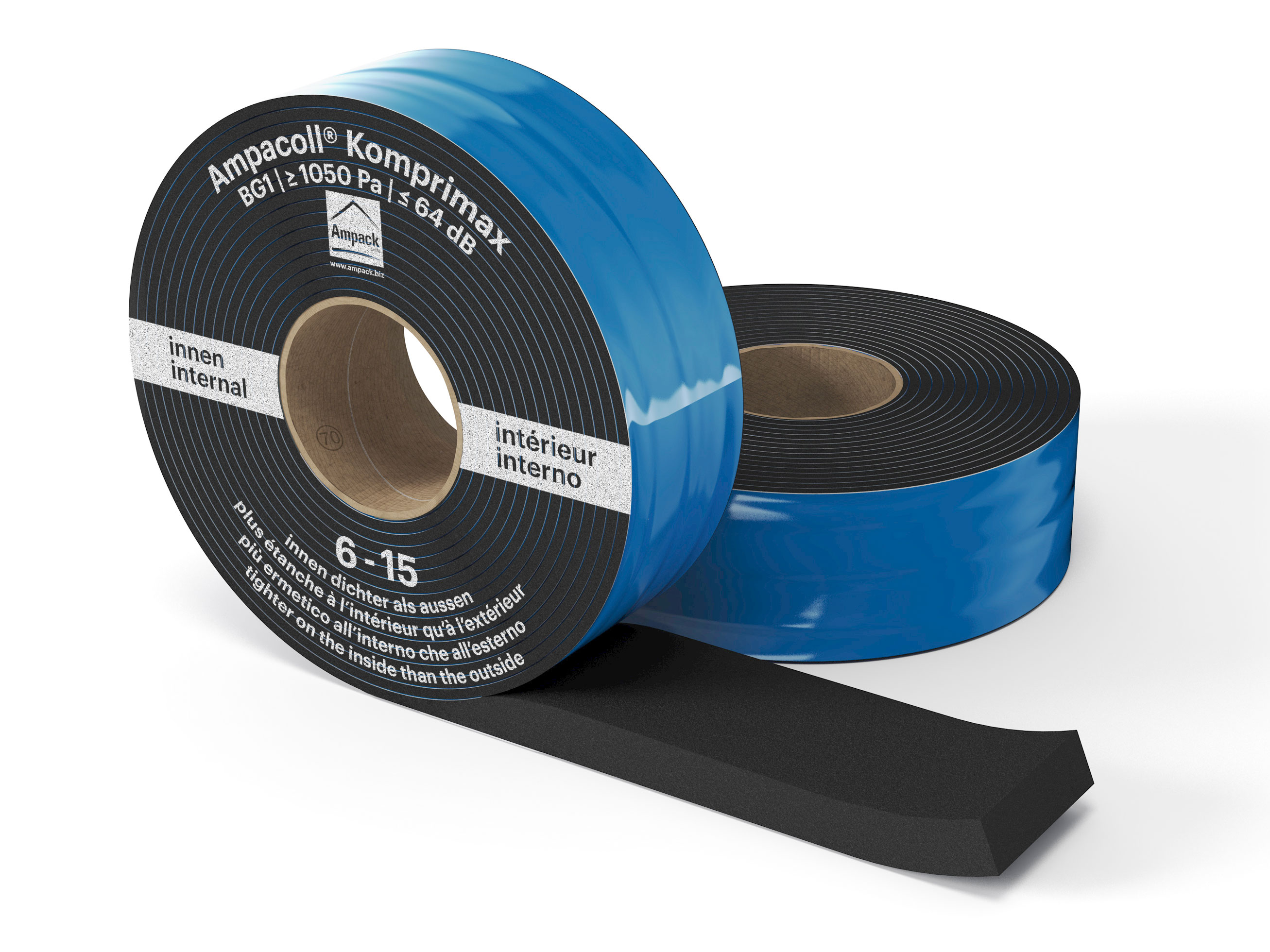

Product photo: Ampacoll Komprimax M 70/6-15, pre-compressed multifunctional tape

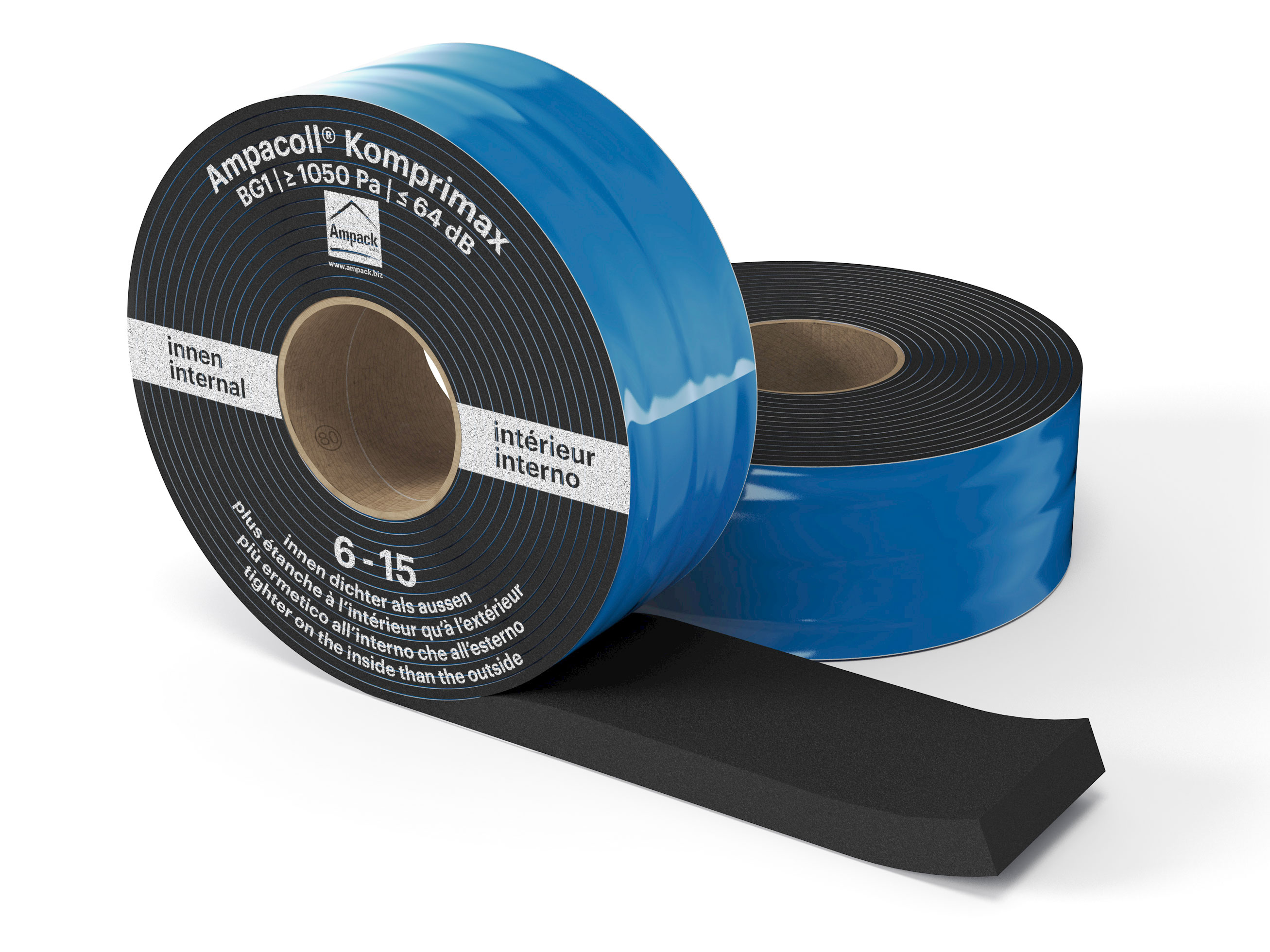

Product photo: Ampacoll Komprimax M 80/6-15, pre-compressed multifunctional tape

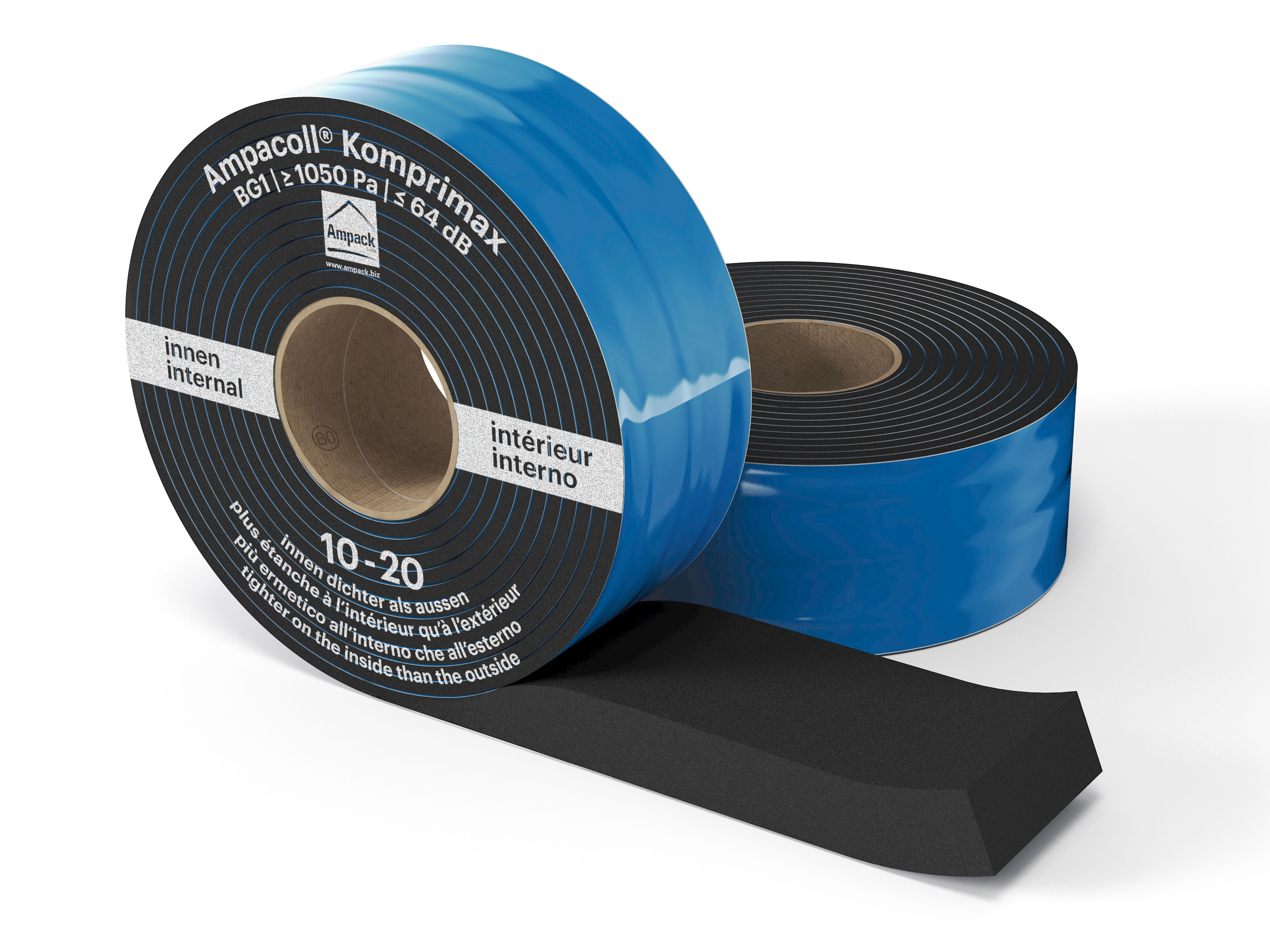

Product photo: Ampacoll Komprimax M 80/10-20, pre-compressed multifunctional tape

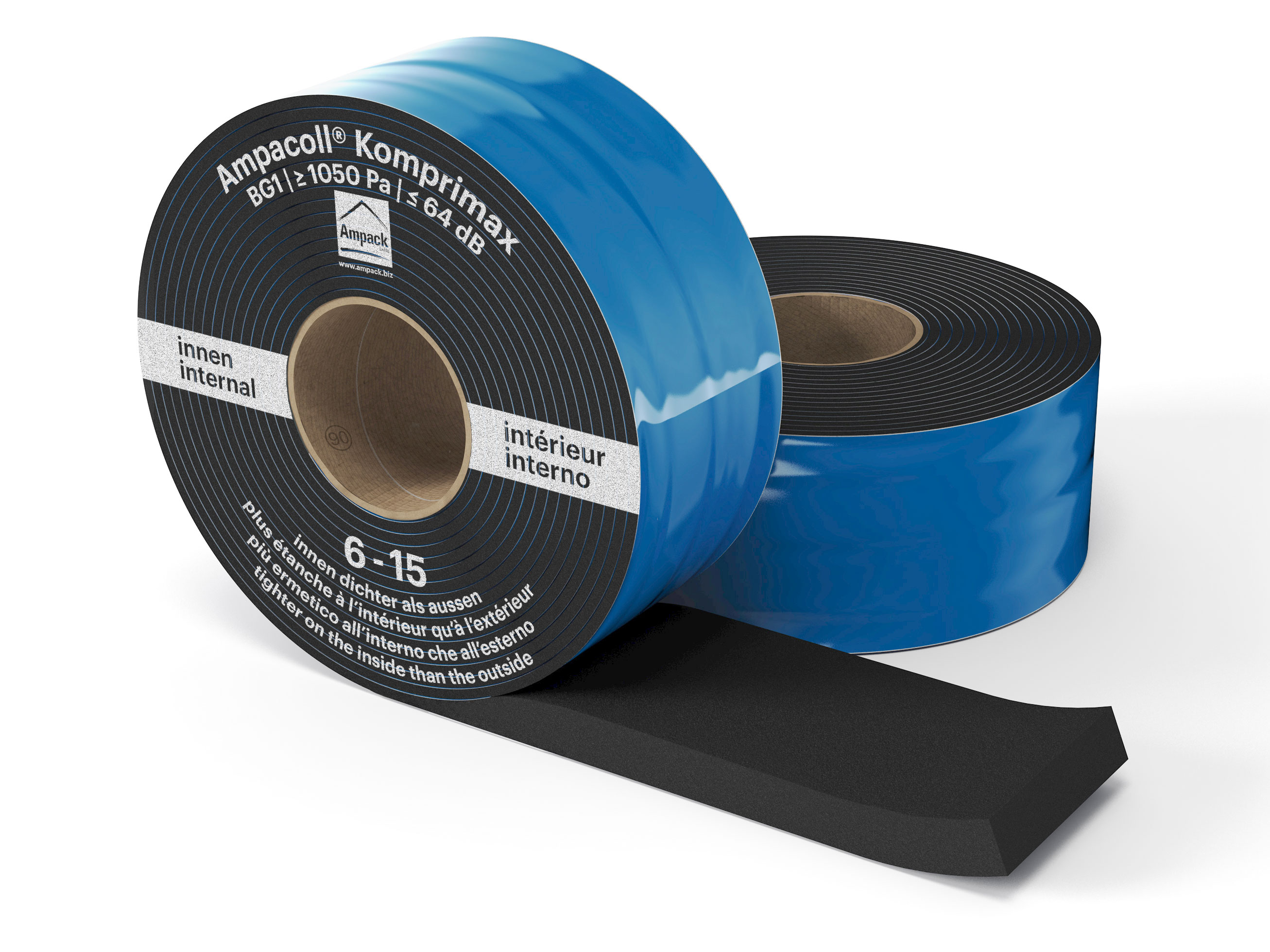

Product photo: Ampacoll Komprimax M 90/6-15, pre-compressed multifunctional tape

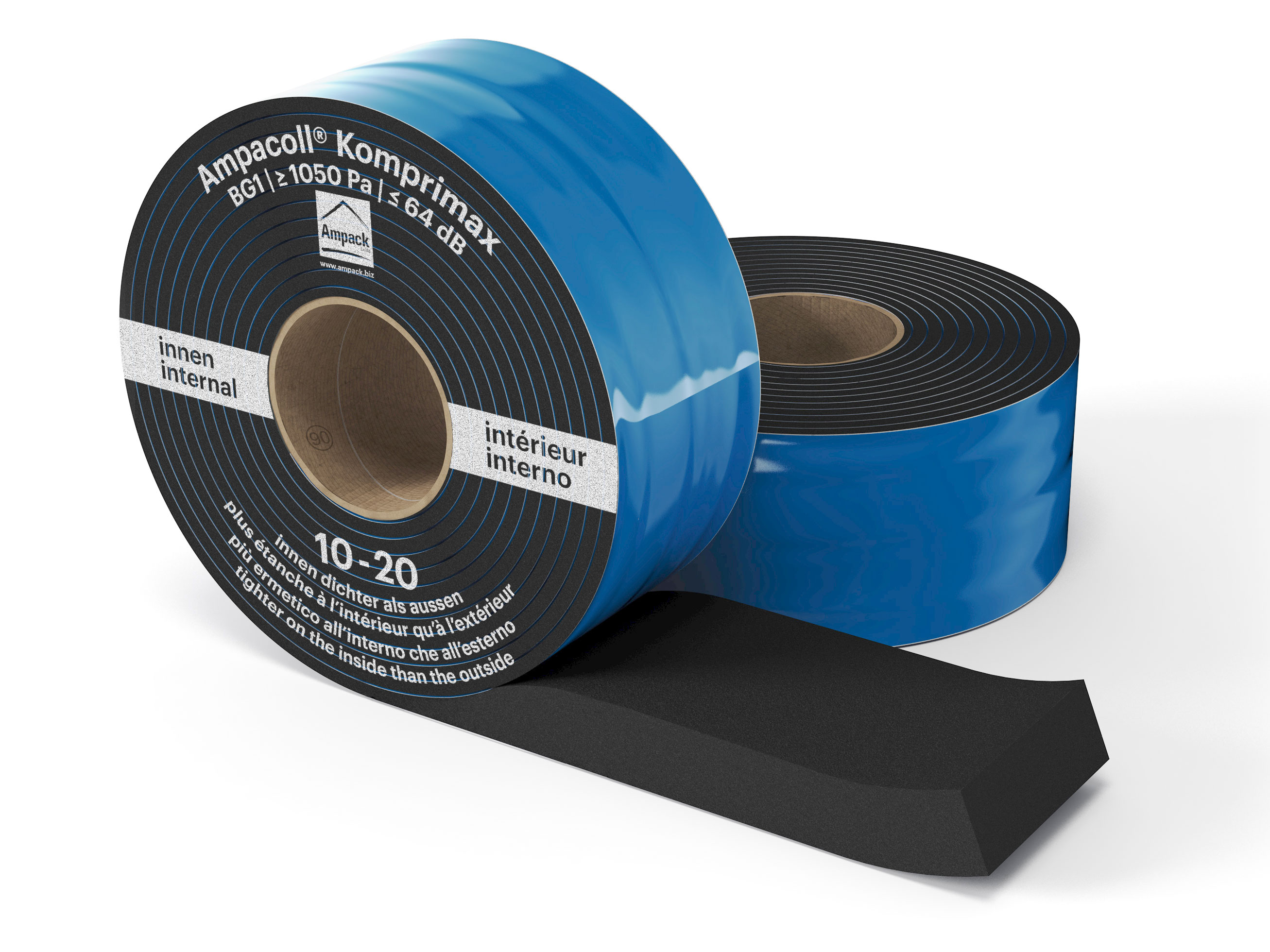

Product photo: Ampacoll Komprimax M 90/10-20, pre-compressed multifunctional tape

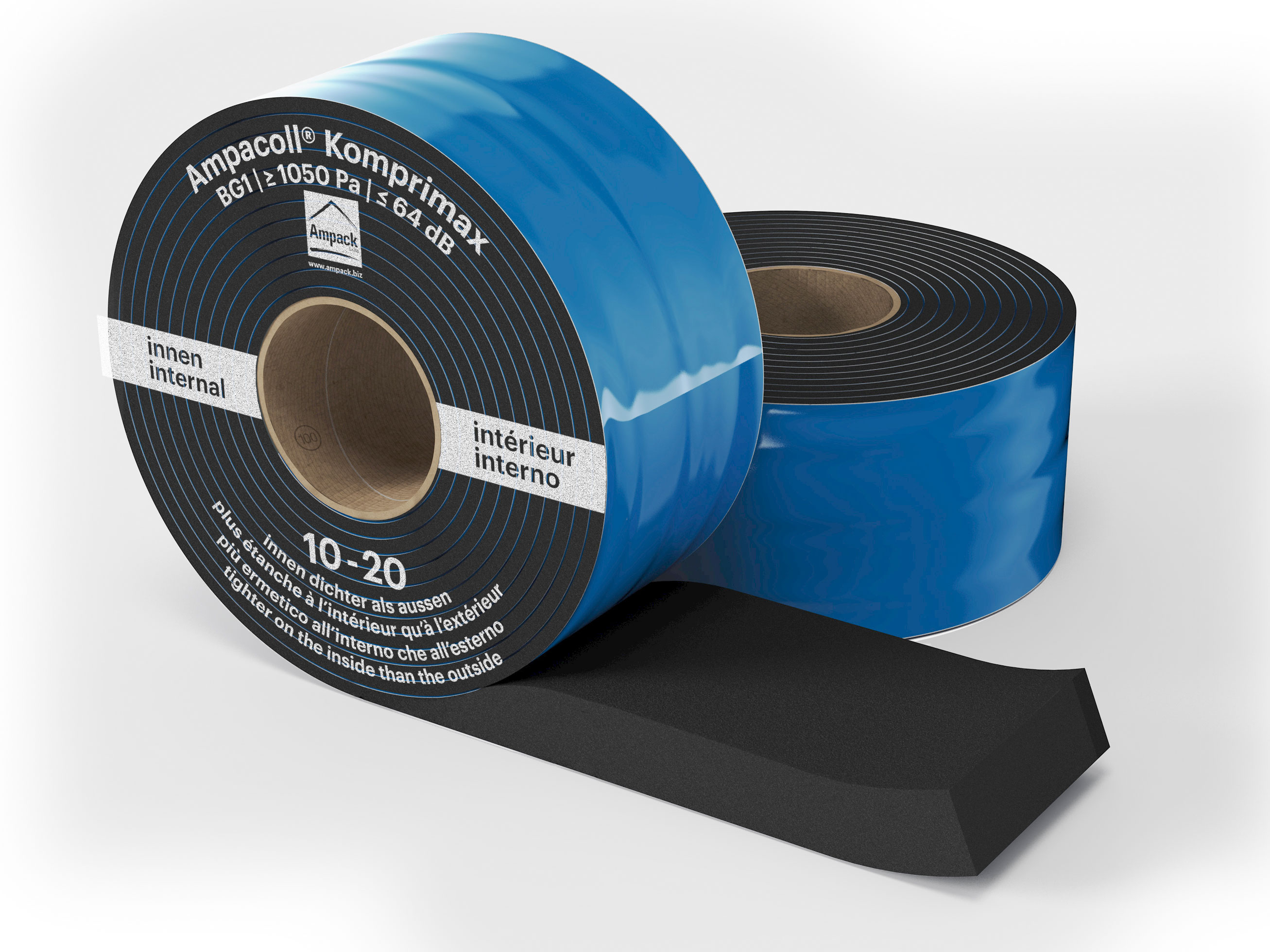

Product photo: Ampacoll Komprimax M 100/10-20, pre-compressed multifunctional tape

Sealed connection of doors and windows in solid, wood and metal constructions.

Stress group 1 (MF 1)
Airtight in accordance with DIN 18542 BGR
Each roll is shrink-wrapped and marked
No variation in tape thickness over the entire roll
Re-usable seal prevents swelling when stored

Multifunctional joint sealing strips for economical window installation and component connections.

Conditions for the twenty-year premium warranty include registering the building object and the Ampack products used. In addition, our products must be used as part of a system. For further details, please see our General Warranty Conditions.

Item no.	Roll size	Joint width	Box contents
7640115538055	53 mm × 8 m	6 – 15 mm	12 rolls = 96 m
*7640115538086	53 mm × 6 m	10 – 20 mm	12 rolls = 72 m
7640115538116	63 mm × 8 m	6 – 15 mm	10 rolls = 80 m
7640115538147	63 mm × 6 m	10 – 20 mm	10 rolls = 60 m
*7640115538178	63 mm × 4 m	15 – 30 mm	10 rolls = 40 m
7640115538208	73 mm × 8 m	6 – 15 mm	8 rolls = 64 m
7640115538239	73 mm × 6 m	10 – 20 mm	8 rolls = 48 m
7640115538291	83 mm × 8 m	6 – 15 mm	8 rolls = 64 m
7640115538321	83 mm × 6 m	10 – 20 mm	8 rolls = 48 m
*7640115538383	93 mm × 6 m	10 – 20 mm	6 rolls = 36 m
*Lieferfrist auf Anfrage

Property	Value	Standard
Stress group	MF 1
Storage time	12 months
Unit weight	about 85 kg/m3
	≥ 1050 Pa
Operating temperature for product	from – 5 °C
Temperature resistance	– 20 °C to + 80 °C
Building material class	B1

Technical data sheets

Technical data sheet: Ampacoll Komprimax M

Technical data sheet: Ampacoll Komprimax M, Precompressed multifunctional tape

Certificates

Certificate EC1 plus: Ampacoll Komprimax M

Certificate EC1 plus: Ampacoll Komprimax M, pre-compressed multifunctional tape

Product photos

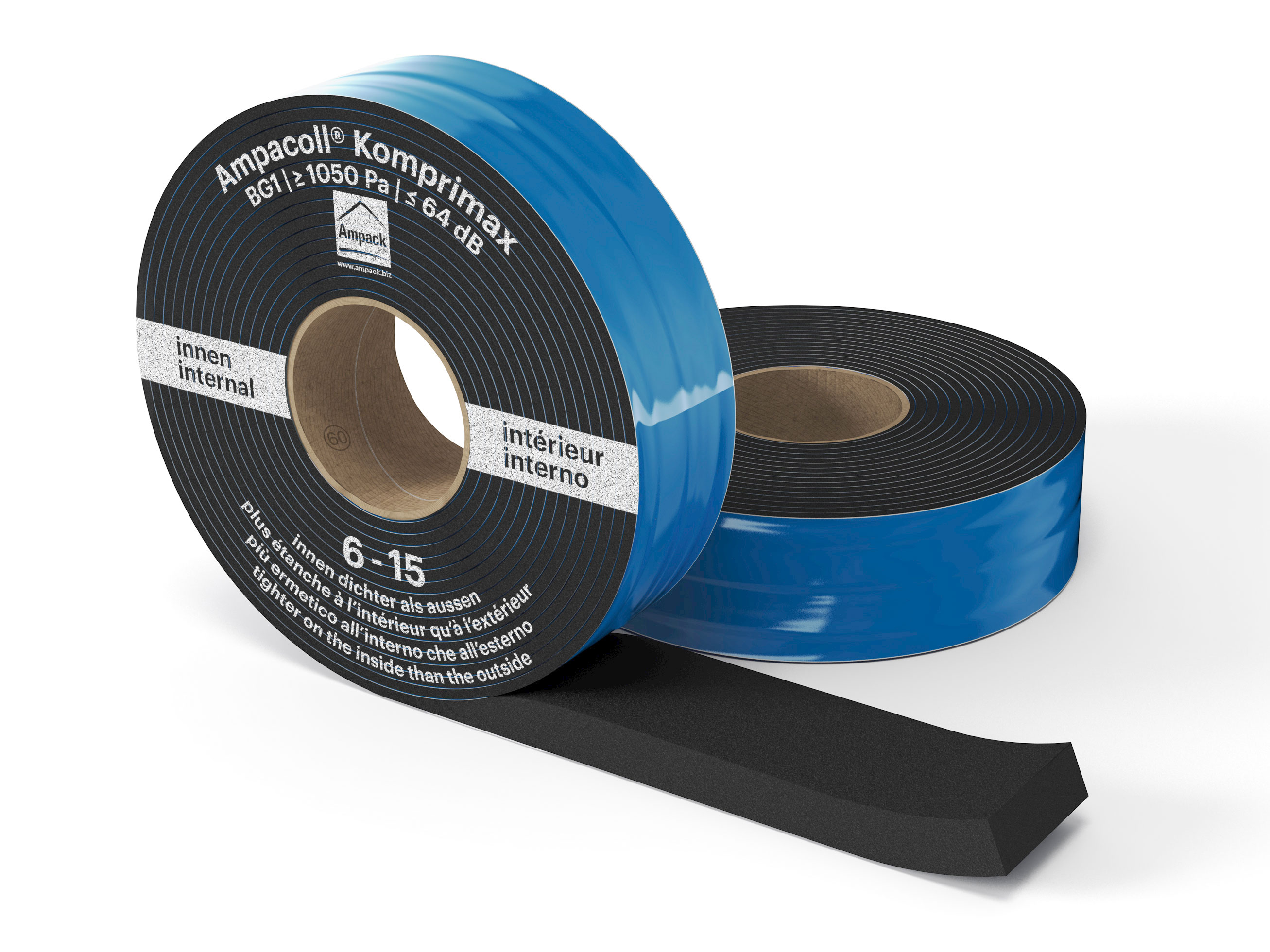

	Product photo: Ampacoll Komprimax M 60/6-15	Product photo: Ampacoll Komprimax M 60/6-15, pre-compressed multifunctional tape
