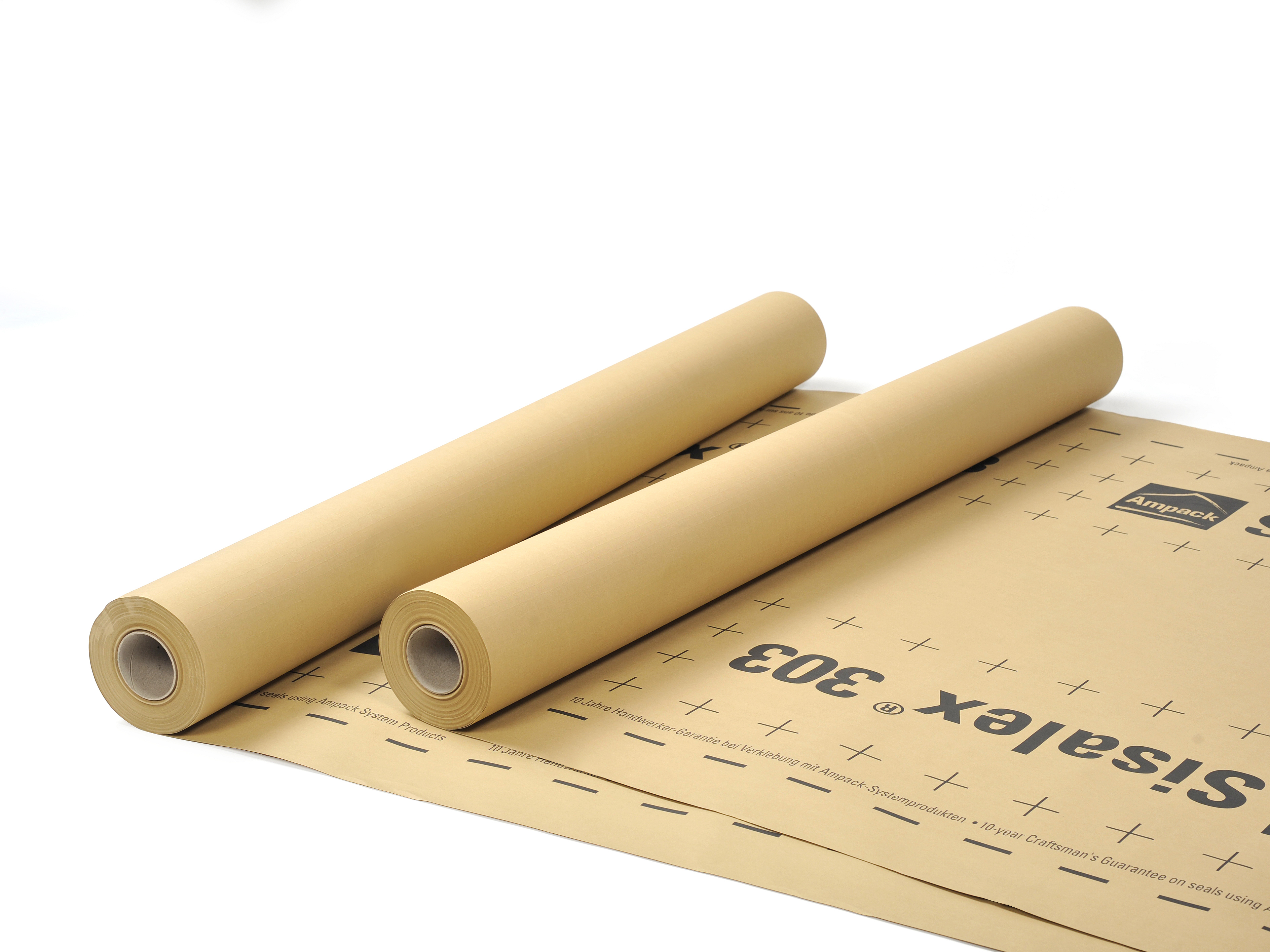

Sisalex 303
Vapour check and airtight layer
Vapour check and airtight layer.
- Eco-friendly product: all elements are of natural origin
- Stable and tear-resistant grid out of glass fibres
- Does not contain fungicides
Triple layer paper vapour check and airtight layer. Compound made of two kraft papers and a glass fibre inlay. Also suitable for cellulose insulation.
Conditions for the twenty-year premium warranty include registering the building object and the Ampack products used. In addition, our products must be used as part of a system. For further details, please see our General Warranty Conditions.
| Article number | Description | Roll dimensions |
|---|---|---|
7640115530707 | Sisalex 303 | 1,5 m × 50 m = 75 m2 |
7640115535726 | Sisalex 303 | 3,0 m × 50 m = 150 m2 |
| Property | Value | Standard |
|---|---|---|
| Harmonised European Standard | EN 13984:2013 | |
| Product description | Typ B | EN 13984:2013 |
|
Mass per unit area |
180 g/m2 |
EN 1849-2 |
|
Straightness |
< 75 mm / 10 m |
EN 1848-2 |
|
Fire behaviour |
E | EN 13 501-1 / EN ISO 11925-2 |
|
Water vapour permeability, sD value |
5 m | EN 1931 |
|
Width of overlap |
10 cm | |
|
Maximum tensile strength longitudinal / transverse |
850 / 800 N/5 cm |
EN 12 311-2, without support liner EN 13 859-1, Appendix A, with support liner |
|
Elongation longitudinal / transverse |
3 / 6 % |
EN 12 311-2, without support liner EN 13 859-1, Appendix A, with support liner |
|
Resistance to tearing (nail) longitudinal / transverse |
75 / 65 N |
EN 12 310-1 without support liner EN 13 859-1, Appendix B, with support liner |
| Air tightness | air tight | |
| Visible defects | none | EN 1850-2 |
| Values after artificial ageing | ||
|
Water vapour permeability, sD value |
approved | EN 1296, 70°C / EN 1931 |
Technical data sheets
|
Technical data sheet: Sisalex 303 | Technical data sheet: Sisalex 303, vapour check and airtight layer |
Declarations of performance
|
|
Declaration of performance: Sisalex 303 | Declaration of performance: Sisalex 303 1.5 x 50 m, vapour check and airtight layer |
|
|
Declaration of performance: Sisalex 303 | Declaration of performance: Sisalex 303 3.0 x 50 m, vapour check and airtight layer |
Product inserts
|
|
Product insert: Sisalex 303 | Product insert: Sisalex 303 1.5 x 50 m, vapour check and airtight layer |
|
|
Product insert: Sisalex 303 | Product insert: Sisalex 303 3.0 x 50 m, vapour check and airtight layer |
Tendering texts
|
|
Tendering text: Sisalex 303 | Tendering text: Sisalex 303, vapour check and airtight layer |
Product photos
|
Product photo: Sisalex 303 | Product photo: Sisalex 303, vapour check and airtight layer |

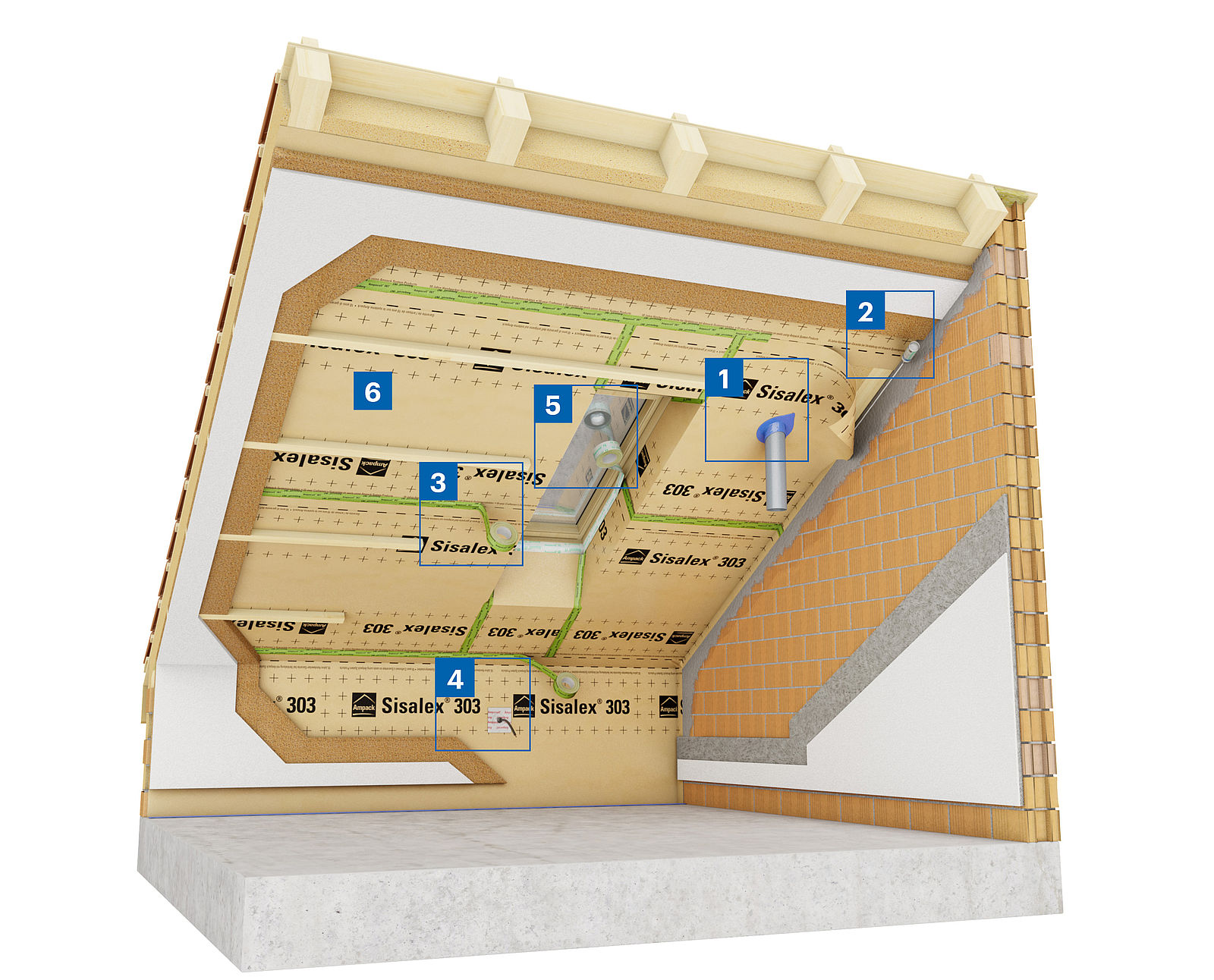

Sisalex 303 is applied as an airtight layer and vapour check for dry interior finishing and positioned on the warm side of the thermal insulation where it is stapled to the construction. Take care when positioning it that the membranes overlap by 10 cm and that the joints are tightly sealed with the enclosed system adhesive strip Ampacoll INT. Ampacoll DT acrylic tape represents an installation aid on underlying structures that cannot be nailed. Application of the interior lining serves as the final fastening step. Edge connections must be sealed with Ampacoll BK 530 or Ampacoll RA. Porous or dusty surfaces must be pre-treated with Ampacoll Primax. Penetrations such as ventilation and electric pipes must be permanently sealed with Ampacoll BK 535 (50 mm). Use Ampacoll Primax as a primer on porous, dusty or rough surfaces.
|
|
