Ampatop Protecta (plus)
Roof membrane
Triple layer, highly tear-resistant roof membrane.
- Diffusion-open yet wind-proof
- Cutting and orientation aid
- Monolithic technology
- Ampatop Protecta plus: integrated tapes on both sides
Triple layer, highly tear-resistant roof membrane. Monolithic technology.
Conditions for the twenty-year premium warranty include registering the building object and the Ampack products used. In addition, our products must be used as part of a system. For further details, please see our General Warranty Conditions.
Article number | Description | Roll dimensions |
---|---|---|
7640115533845 | Ampatop Protecta | 1,5 m × 50 m = 75 m2 |
7640115533869 | Ampatop Protecta plus integrated tapes on both sides | 1,5 m × 50 m = 75 m2 |
7640115537645 | Ampatop Protecta plus integrated tapes on both sides | 3,0 m × 30 m = 90 m2 |
Property | Value | Standard |
---|---|---|
Harmonised European Standard | EN 13859-1:2014 | |
Mass per unit area |
200 g/m2 |
EN 1849-2 |
Straightness |
< 75 mm/10 m |
EN 1848-2 |
Fire behaviour |
E | EN 13 501-1 / EN ISO 11925-2 |
Resistance to water penetration |
W1 | EN 1928 |
Water vapour permeability, sD value |
0,25 m | EN 1931 |
Width of overlap |
10 cm | |
Temperature resistance |
-40 to +80 °C | |
Maximum tensile strength longitudinal / transverse |
360 / 270 N/5 cm |
EN 12 311-2, without support liner EN 13 859-1, Appendix A, with support liner |
Elongation longitudinal / transverse |
60 / 75 % |
EN 12 311-2, without support liner EN 13 859-1, Appendix A, with support liner |
Resistance to tearing (nail) longitudinal / transverse |
220 / 240 N |
EN 12 310-1 without support liner EN 13 859-1, Appendix B, with support liner |
Dimensional Stability |
-2 % |
EN 1107-2 |
Cold bending behaviour (flexibility) |
-40 °C | EN 1109 |
Resistance to air penetration (a value) |
< 0,004 m3/m2 x h x 50 Pa |
|
approved | Driving rain test TU Berlin | |
Outdoor weathering |
3 months | |
Minimum roof slope |
10° | |
Visible defects | none | EN 1850-2 |
Values after artificial ageing | ||
Maximum tensile strength longitudinal / transverse |
345 / 242 N/5 cm |
EN 13859-1, appendix C, EN 1297, EN 1296 |
Elongation longitudinal / transverse |
345 / 242 N/5 cm |
EN 13859-1, appendix C, EN 1297, EN 1296 |
Resistance to water penetration |
W1 | EN 13859-1, appendix C, EN 1297, EN 1296 |
Technical data sheets
Technical data sheet: Ampatop Protecta (plus) | Technical data sheet: Ampatop Protecta (plus), roof membrane |
Product inserts
Product insert: Ampatop Protecta plus | Product insert: Ampatop Protecta plus 1,5 x 50m, roof membrane, integrated tapes on both sides | |
Product insert: Ampatop Protecta | Product insert: Ampatop Protecta 1,5 x 50m, roof membrane | |
Product insert: Ampatop Protecta plus | Product insert: Ampatop Protecta plus 3,0 x 50m, roof membrane, integrated tapes on both sides |
Tendering texts
Tendering text: Ampatop Protecta (plus) | Tendering text: Ampatop Protecta (plus), roof membrane |
Declarations of performance
Declaration of perfomance: Ampatop Protecta plus | Declaration of perfomance: Ampatop Protecta plus 1,5 x 50m, roof membrane, integrated tapes on both sides | |
Declaration of perfomance: Ampatop Protecta | Declaration of perfomance: Ampatop Protecta 1,5 x 50m, roof membrane | |
Declaration of perfomance: Ampatop Protecta plus | Declaration of perfomance: Ampatop Protecta plus 3,0 x 50m, roof membrane, integrated tapes on both sides |
Product photos
Product photo: Ampatop Protecta (plus) | Product photo: Ampatop Protecta (plus), roof membrane |
Application photos
Application photo: Ampatop Protecta (plus) | Application photo: Ampatop Protecta (plus), roof membrane | |
Application photo: Ampatop Protecta (plus) | Application photo: Ampatop Protecta (plus), roof membrane | |
Application photo: Ampatop Protecta (plus) | Application photo: Ampatop Protecta (plus), roof membrane |

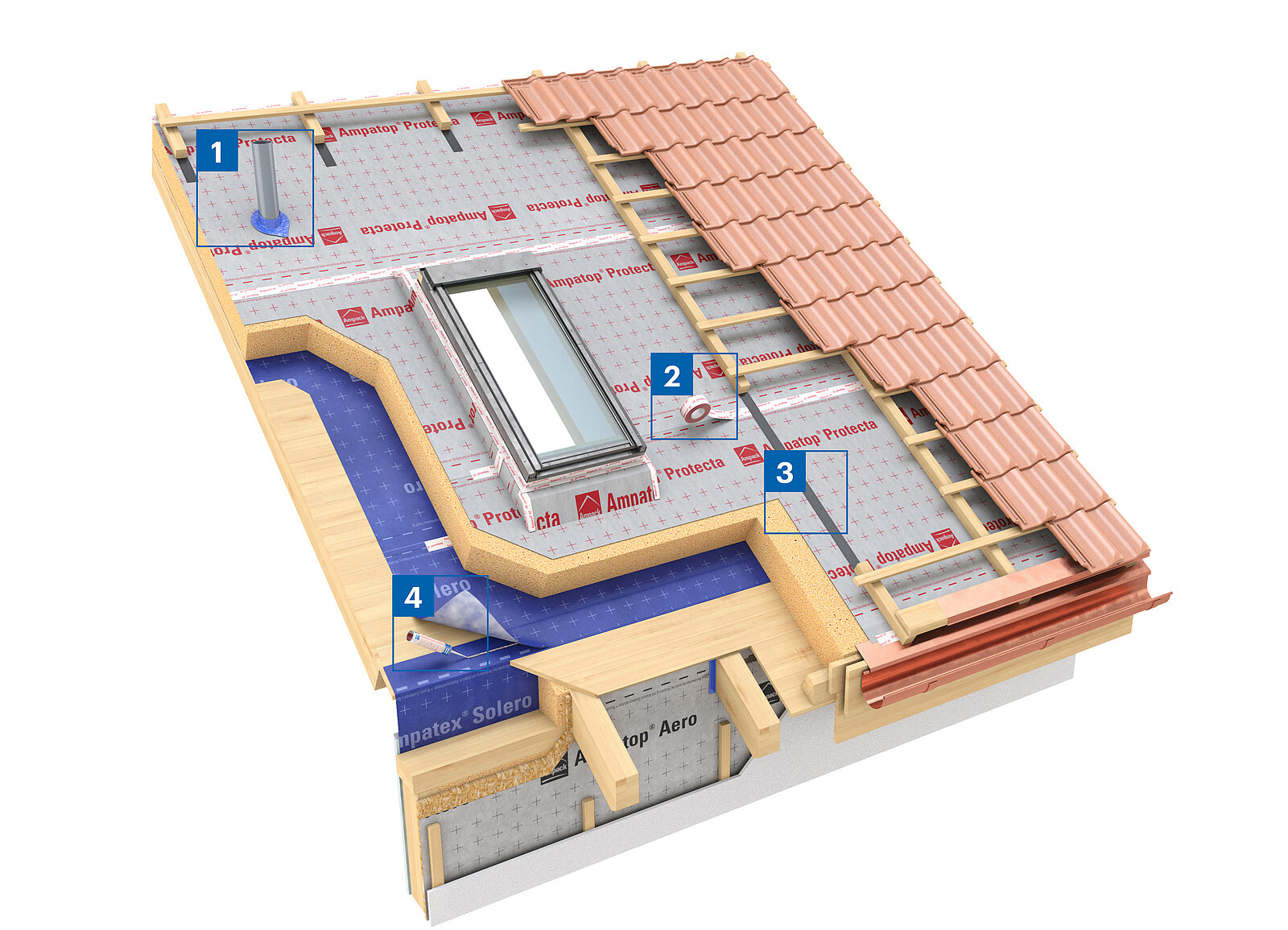

Ampatop Protecta (plus) should be laid onto the existing support structure or shell, parallel to the eaves, with an overlap of 10 cm. It should then be nailed (with broad-headed nails) or stapled in the overlapping section, with the overlap covering the nails or staples. Tape the overlaps down with the adhesive tape Ampacoll XT 60 mm or the integrated tapes to make them rain-proof and wind-proof. Rub the adhesive locations in well. Transverse joints should also overlap by 10 cm. These should be taped with Ampacoll Superfix or Ampacoll XT 60 mm. Fix cross battens with Ampacoll ND nail seals or Ampacoll ND.Band / ND Duo nail seal tape. Connections to gutter beds and the edges of chimneys, dormer windows and other built-in fitments must be permanently glued with Ampacoll Superfix and mechanically secured. Penetration points such as ventilation shafts, ventilation flues, etc must be sealed with Ampacoll BK 535 butyl rubber tape. Porous, dusty or fleecy sub-surfaces must be pretreated with Ampacoll Primax or Airmax before applying Ampacoll BK butyl tapes.
